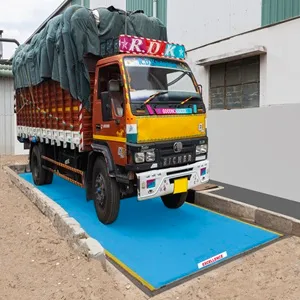

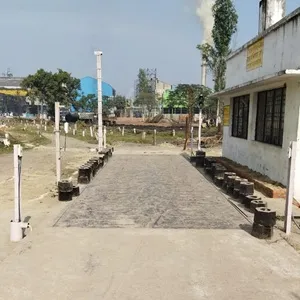

Pit Type Weighbridge
Maximum Space Efficiency. Seamless Ground-Level Integration. Built for Heavy Traffic.
High-Performance In-Ground Weighing Solution
The Pit Type Weighbridge is engineered for high-traffic industrial sites where yard space is at a premium. By installing the platform flush with the ground, it eliminates the need for approach ramps, allowing vehicles to access the scale from any angle. Constructed with IS 2062 Structural Steel and equipped with OIML R60 certified load cells, this system ensures long-term accuracy and structural durability under heavy-duty cycles.
Compliance Standards
- ✔ OIML R60 Certified: International precision for legal trade applications.
- ✔ IP68 Protection: Hermetically sealed load cells for superior moisture resistance in pits.
- ✔ Anti-Corrosive Coating: Industrial-grade PU paint for long-term weather protection.
Engineering Excellence
- ✔ Heavy Duty I-Beams: Robust deck design preventing any structural fatigue.
- ✔ Smart Drainage: Specialized pit design to prevent water logging and debris accumulation.
- ✔ Easy Maintenance: Manhole access for quick calibration and sensor inspection.
Technical Specifications & Model Range
| Platform Size (M) | Capacity (MT) | Accuracy (e) | Standard Configuration |
|---|---|---|---|
| 7.5m x 3.0m | 30T - 60T | 5 / 10 Kg | 4-6 High Precision Sensors |
| 9.0m x 3.0m | 60T - 100T | 10 Kg | OIML Approved Metrology |
| 12m x 3.0m | 80T - 120T | 10 / 20 Kg | Heavy Duty Steel Deck |
| 16m x 3.0m | 100T - 150T | 20 Kg | Digital RS485 Communication |
| 18m x 3.0m | 120T - 150T | 20 Kg | Customizable Multi-Column |
Operational Efficiency
The flush-mount design optimizes traffic flow in congested premises. When weighing is not in progress, the weighbridge area serves as a standard driveway, significantly improving site logistics.
Intelligent Software Control
Comes with our proprietary Weighing Software featuring RFID integration, CCTV capture, encrypted data logging, and automated reporting for seamless ERP connectivity.
Key Industry Applications
Ready for a Space-Efficient Solution?
Consult with our engineers for custom-designed Pit Type Weighbridges.
