Semi-Pit / Modular Weighbridge
Advanced Modular Engineering. Faster Site Assembly. Superior Structural Integrity.
Next-Gen Modular Weighing Technology

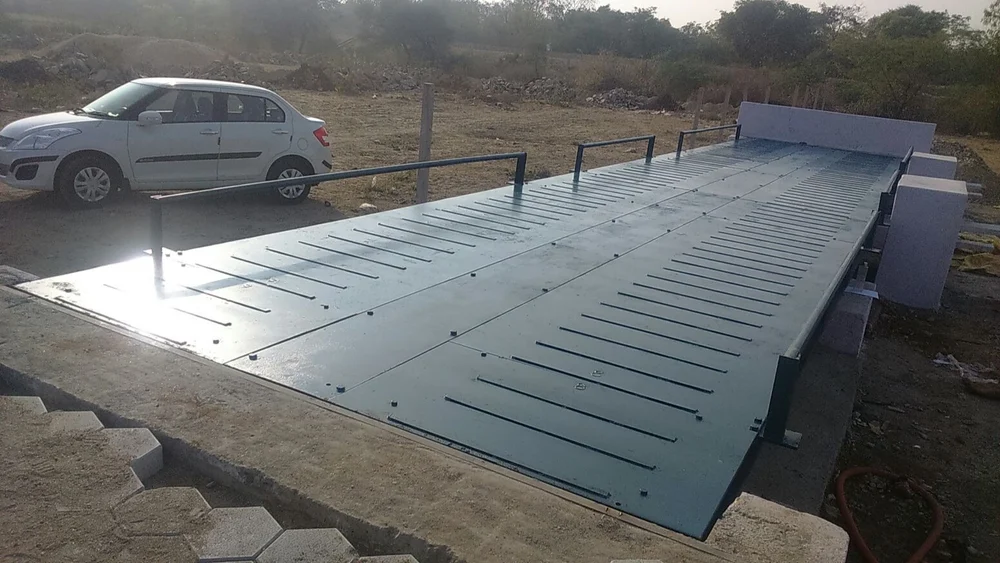

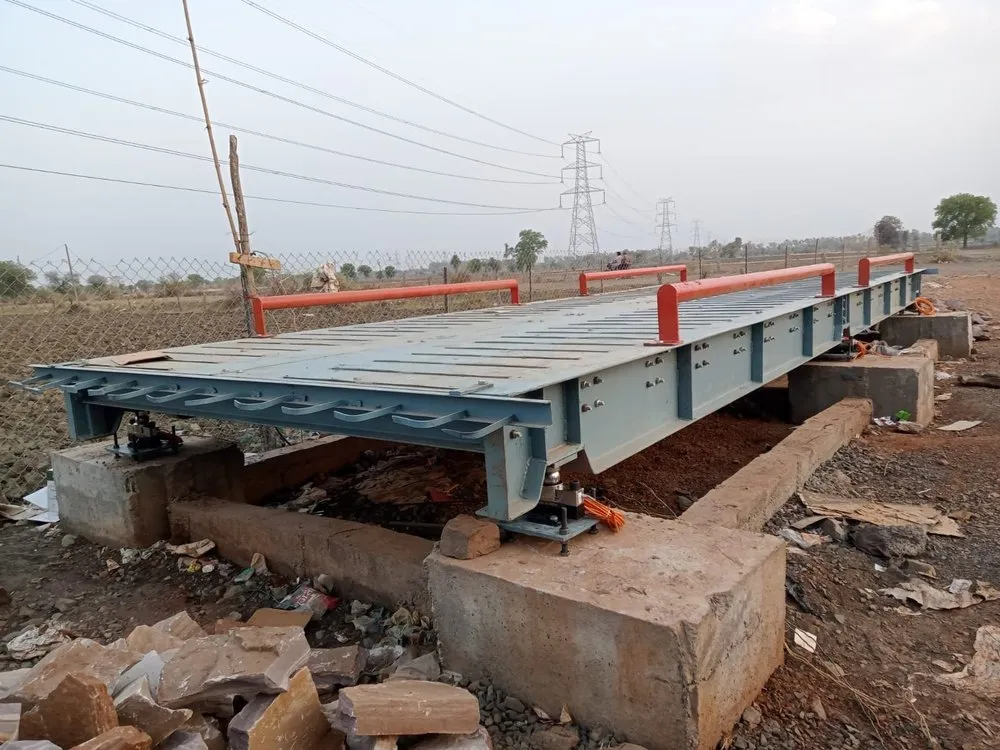

The Semi-Pit / Modular Weighbridge represents the peak of modern weighing engineering. By utilizing Modular Deck Sections, this system allows for rapid site assembly and significantly lower transportation costs compared to traditional fully-welded structures. The Semi-Pit design offers the best of both worlds—low-profile accessibility similar to pitless models, but with the stability and space-saving advantages of pit-type systems. Built using IS 2062 Grade Steel, it ensures maximum durability for high-intensity industrial weighing.
Engineering Excellence
- ✔ Modular Structure: Bolt-on design reduces installation time and manual labor on-site.
- ✔ OIML R60 Certified: High-precision metrology components for accurate legal-for-trade weighing.
- ✔ IP68 Protection: Fully hermetically sealed load cells to prevent damage from moisture or dust.
Advanced Performance
- ✔ Low Civil Cost: Optimized semi-pit design requires less excavation than full pit models.
- ✔ Surge Protection: Integrated lightning arrestors compliant with international safety standards.
- ✔ Anti-Skid Surface: Heavy-duty chequered or sand-blasted finish for superior tire grip.
Technical Specifications & Model Range
| Platform Size (M) | Capacity (MT) | Division (e) | Technology Features |
|---|---|---|---|
| 7.5m x 3.0m | 20T - 40T | 5 Kg | High-Resolution Analog/Digital |
| 9.0m x 3.0m | 40T - 60T | 10 Kg | Modular Sectional Design |
| 12m x 3.0m | 60T - 100T | 10 Kg | OIML Certified Metrology |
| 16m x 3.0m | 100T - 120T | 20 Kg | IS 2062 High-Tensile Steel |
| 18m x 3.0m | 100T - 150T | 20 Kg | Multi-Channel ERP Integration |
MIS & Software Integration
Each modular weighbridge is equipped with our proprietary Intelligent Weighing Software. It features secure multi-user access, encrypted data logs, and exportable MIS reports. Seamlessly connect your weighing data with your existing ERP or Cloud platforms for real-time monitoring.
Operational Versatility
The semi-pit design allows for easy access to load cells from the side, making periodic maintenance and cleaning effortless. It is specifically recommended for logistics hubs, transport yards, and large-scale manufacturing plants.
